Pump type: centrifugal, single-stage,
Impeller design: semi-open,
Power consumption: 370W,
Electrical cable length: 10m,
Capacity: 12000 l/h,
45m diving capacity: 250 lmin,
Maximum diving depth: 6 m,
Maximum head height: 10.2 m,
Maximum size of non-abrasive particles: 15 mm,
Maximum temperature of the pumped water: +35C,
Hose Diameter: 1 1/4"",
Warranty period: 2 years old,
Asynchronous motor with overload protection,
Automatic on/off by means of a float switch,
The impeller is designed specifically for faecal effluents,

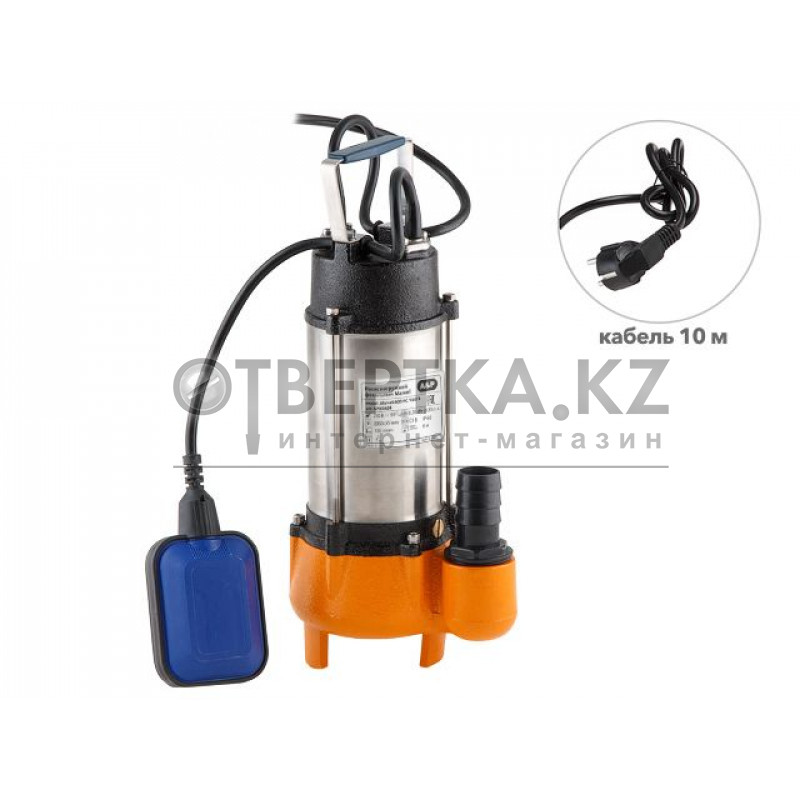

Marvel submersible fecal pump is a device for pumping contaminated water with a solid particle content up to 25 mm in diameter. Water intake is carried out through suction holes in the bottom of the pump.
To ensure the best result, the pump must be in the liquid in an upright position, completely immersed in water. It is not allowed to install the pump on the muddy bottom of the tank - in this case, it is necessary to suspend the pump to avoid sludge suction.
The 2-year warranty starts from the moment you fill out the GT. If the pump is sold in the spring of 2022, its warranty period will end in the spring of 2024.
Pump with float,
Connection 1 1/4" x Herringbone 1 1/2",,
Passport,
AVE183005 nar connection. thread 1 1/4" x Herringbone 32mm AV Engineering,
AVE91032 PVC drainage hose, 1 1/4" x10m (4 bar) AV engineering,
AVE92532 PVC drainage hose, 1 1/4" x25m (4 bar) AV engineering,
AVE90032 PVC drainage hose, 1 1/4"x50m (4 bar) AV engineering,
AVE9011032 PE drainage hose, 1 1/4"x10m (2 bar) AV engineering,
AVE9012532 PE drainage hose, 1 1/4" x25m (2 bar) AV engineering,

Характеристики A&P AP02A05:

Страна изготовления:	Китай
КОД ТНВЭД:	8413702100
Штрихкод:	3794100413972
Единица измерения:	шт.
Габариты ДxШxВ, см:	40 х 14 х 18
Вес с упаковкой, кг:	9.22
